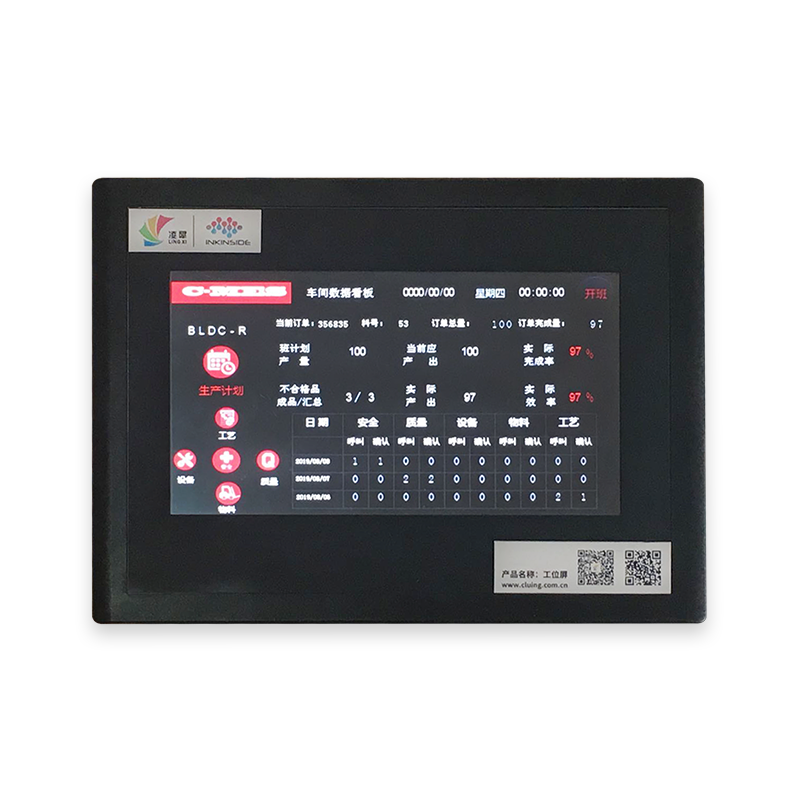

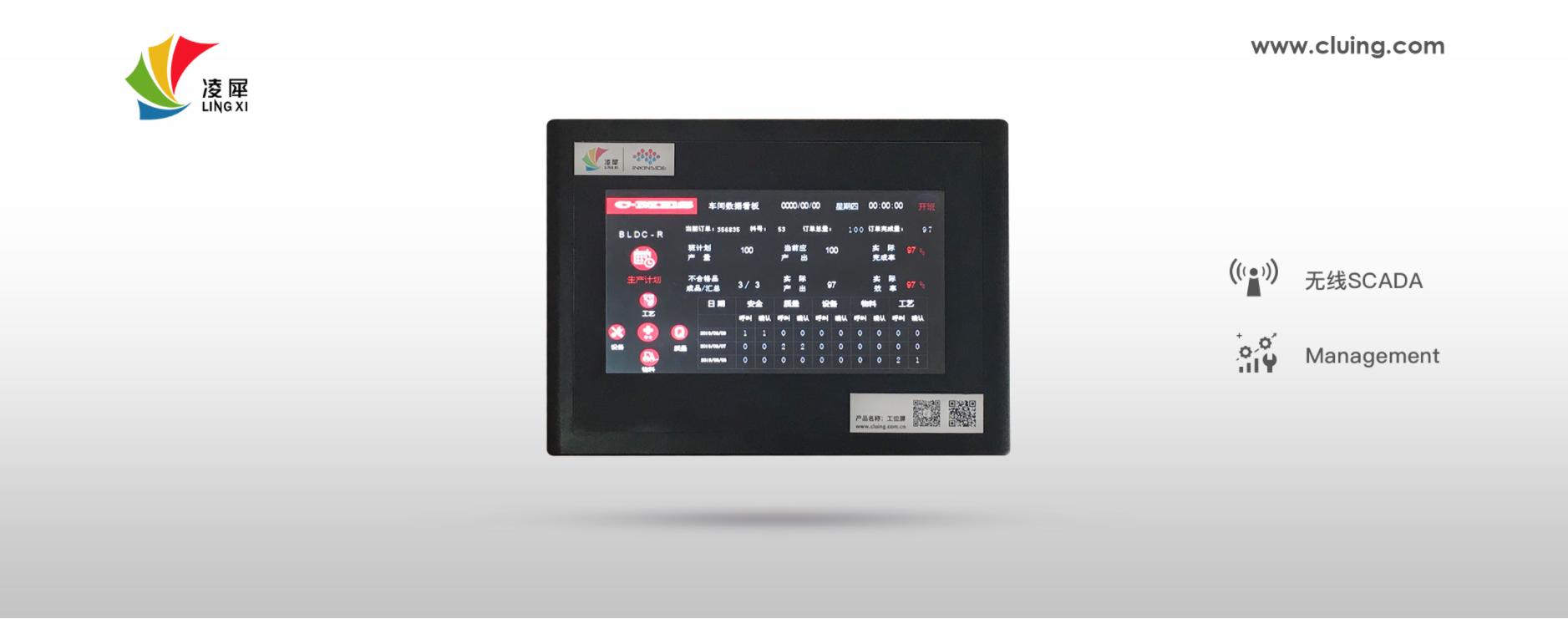

Wireless workstation HMI
Product Description
As one of the collection and receiving terminals, the wireless workstation HMI is used for on-site calling of industrial workshop operators, human-computer interaction; and as a workstation signboard to receive information display and on-site visual management.
Product Features
Using LoRa spread spectrum communication technology, it has strong anti-interference ability.
Supports LoRaWAN1.0 standard protocol and Lingxi LoRa ad hoc network custom protocol.
Adopt industrial-grade ultra-low power consumption and high-performance embedded controller.
LoRa wireless communication has a radius of 500-1500 meters and has good stability.
Resolution 800*480.
No operating system runs fast and the system has high stability.
Graphical interface development environment supports online simulation display effects.
Support 24bit true color.
It can adapt to a variety of application scenarios and interface with other systems.
Product Features
Structural parameters | shell material | ABS plastic |
Installation method | Embedded installation or wall-mounted installation | |
Appearance size(mm) | 35 (thickness)*154 (width)*210 (length) | |
color | black | |
resolution | 800*480 , support 24bit true color | |
wireless interface | Wireless SCADA | SMA wireless SCADA antenna, 470MHz |
I/O interface | serial port | All the way RS232 |
Network port | none | |
control protocol | Modbus RTU etc. | |
Protocol | wireless protocol | Supports Lingxi wireless SCADA self-organizing network protocol, with short delay, which can be used for real-time display. Can also be used for industrial control |
interaction | Support touch screen interaction | |
Power consumption | 2W | |
power supply | DC | 24 |
